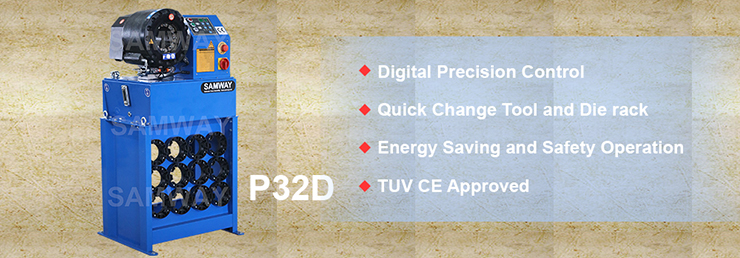

MÁY BẤM ỐNG THỦY LỰC SAMWAY P32D
SAMWAY P32D
SAMWAY_CHINA
12 Tháng
P32D Hydraulic Hose Crimping Machine
Feature description：
● Digital Precision Control
● Quick Change Tool and Die rack
● Energy Saving and Safety Operation
● TUV CE Approved
P32D Hydraulic Hose Crimping Machine
Specification：
| Main Specification | SAMWAY P32D |
| Max Hydraulic Hose | 2" 4SP |
| Crimping Range mm | 4-87 |
| Die Type | P32 |
| Master Die Length mm | 80 |
| Max Opening mm | +32 |
| Motor KW | 4 |
| Crimping Force KN | 2200 |
| Crimpings Per Hour | 1200 |
| Control | Digital Control |
| Foot pedal | Included |
| Die Rack | Included |
| Quick Change Tool | Included |
| Backstop Device | Optional |
| Control by Pressure | Optional |
| Noise Level dBA | 65 |
| Protection Class | IP56 |
| L*W*H mm | 680*600*1400 |
| Weight KG | 300 |
Standard Die Sets Included:
| Die No. | 10* | 12* | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 57 | 63 | 69 | 74* | 78* |
| Length | 55 | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 90 | 90 | 90 | 90 | 90 | 100 | 100 | 100 | 100 |
* Optional Die Sets Upon Request
Order No.：
220V, 400V, 415V, 440V,480V 3 phase :00001310
110V 60hz single phase :00001311
220V 50/60hz single phase :00001312
